SUBSTANCE XL V2 CRANK

€219,99

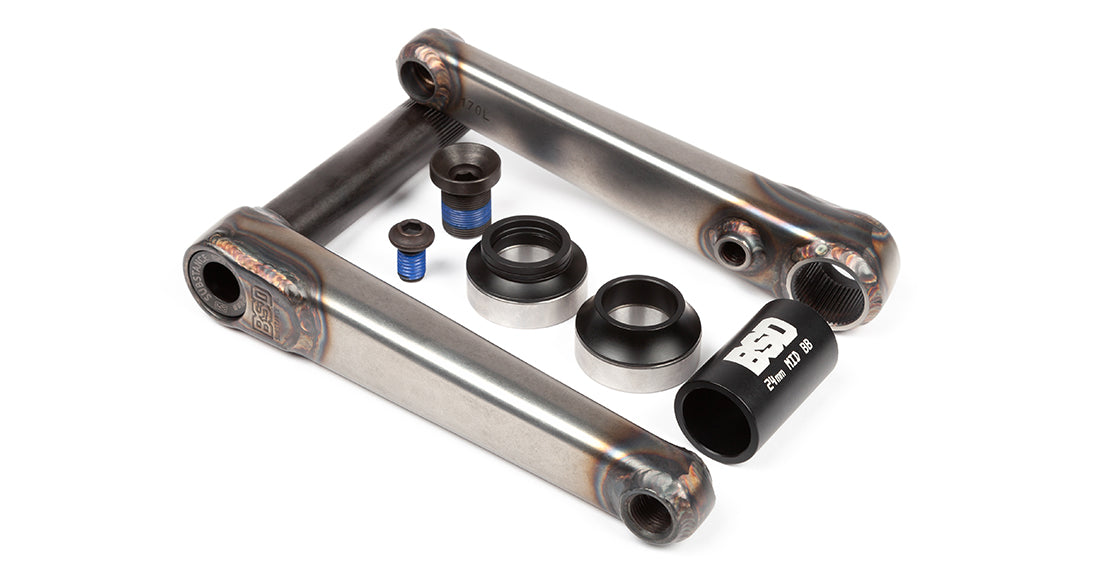

The updated Substance XL V2 crankset, now featuring a redesigned boss made with using investment casting. This new boss design sits seamlessly flush with the crank arm, completely eliminating sharp edges around the ankle area.

*Now available in a super short 160mm length for added heel/peg clearance on short frames.

BSD Mid 24mm bottom bracket also included.

- +
BSD Forever
files/bsd-website-productpromobanners-cranks-substancexlv2-m.jpg
Tech specs
Material Heat treated 4130 chromo
Length 160mm / 165mm / 170mm / 175mm
Spindle diameter 24mm
Weight 1.90lbs

Design Features

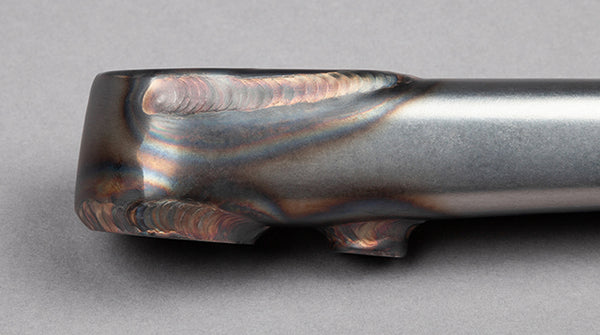

Flush Boss Design

We've designed the Substance XL V2 crank arm with an invest cast boss that sits super flush eliminating sharp edges that can whack your ankles.

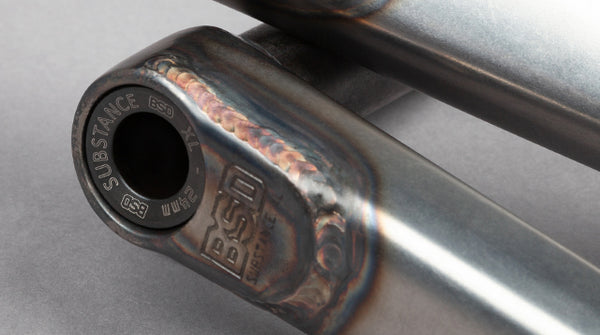

Oversized Hollow Spindle

The 24mm diameter spindle is stiffer and stronger but being hollow, does not add any extra weight to the cranks compared to 22mm versions.

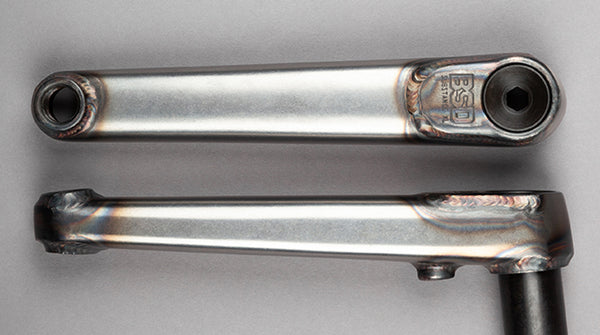

Rectangular Arms

The Substance XL V2 crank features heat treated 4130 chromoly arms with a rectangular cross section for increased stiffness and grindability.
