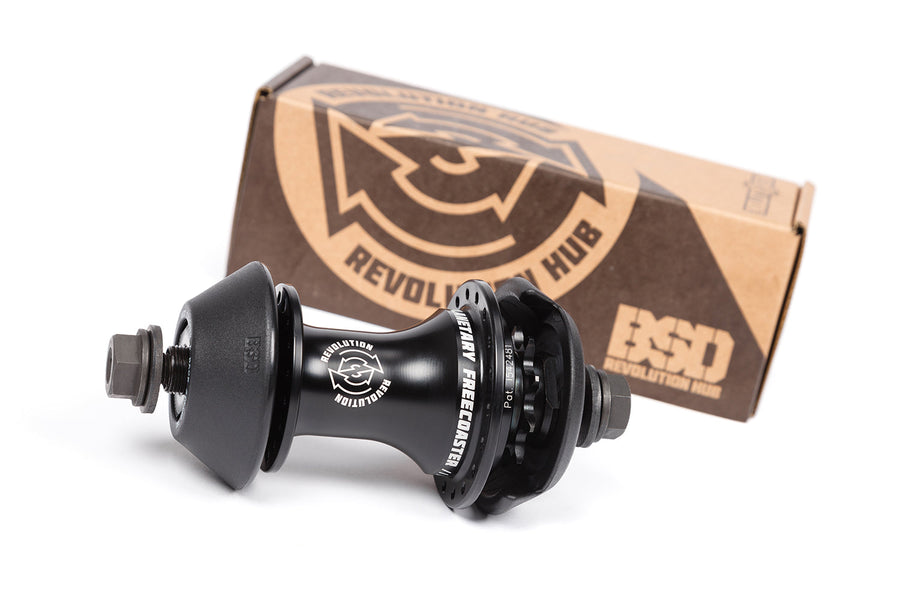

REVOLUTION HUB V1.5 (FEMALE AXLE)
The BSD Revolution Hub is a next-generation Planetary freecoaster, it's a hub that feels like a cassette hub, weighs the same as a cassette hub, has a pedal gap like a cassette hub and sounds like a cassette hub. Sounds like a dream huh? Well now it’s a reality.
Introducing the new BSD Revolution v1.5 Hub with the new upgraded v1.5 spring loaded clutch.
*This is the new female axle version of the hub*
At the core of the system is the Planetary Clutch Mechanism, a compact, innovative clutch that replaces the traditional heavy cone-style clutch with a lightweight assembly. This advanced mechanism enables immediate pedal engagement with virtually zero pedal gap, while eliminating unwanted engagement during fakie manoeuvres.
Utilizing the Planetary clutch system that functions in a unique and revolutionary way, the BSD Revolution hub eliminates many of the problems associated with the heavyweight traditional cone style clutch design.
• 30% lighter than conventional freecoaster hubs.
• No gap when pedalling forward.
• Eradicates unwanted engagement on rollbacks.
• Feels and sounds like a cassette hub.
• No need for oversized hub bearings due to low axial load.
• Supertough hollow male 14mm chromo axle.
• Includes BSD-specific hubguards for optimal grind protection
Dimensions for spokes:
| Clutch | Planetary v1.5 System |
| Shell | 6061-T6 Alloy Drilled For 36 Spokes |
| Axle | Female 14mm 4140 heat treated chromo |
| Wheelnuts | 4130 Heat Treated Chromo |
| Drive Side | RHD / LHD |
| Drive Side Hubguard | Jersey Barrier Drive Side |
| Non-Driveside Hubguard | Jersey Barrier West Coaster Plastic Only |
| Weight | 468g without hubguards |
Design Features

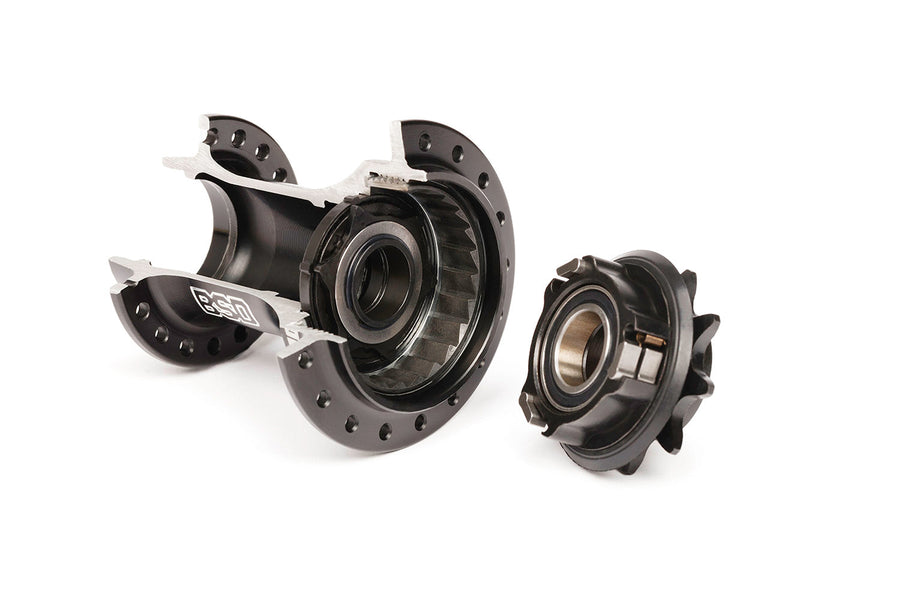

PLANETARY V1.5 CLUTCH
The Planetary clutch is the control mechanism for the hub. While going forwards it ensures minimal slack, while going backwards the clutch creates maximum slack. Magical huh? It's also much lighter than a traditional cone style freecoaster clutch. Patent pending.

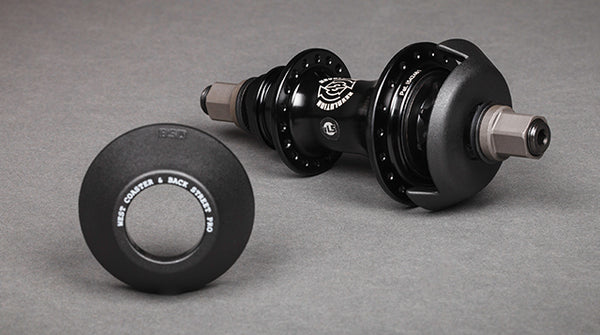

HUBGUARDS INCLUDED
BSD Jersey Barrier hubguards for both drive and non-drive side come as standard with the Revolution hub. They simply pop on to the cones and provide protection for your hub while making sure your grinds aren't slowed down.

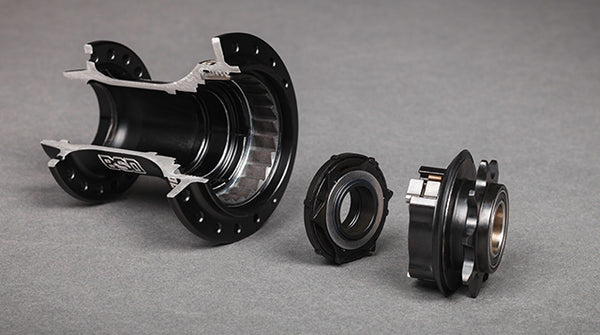

REVERSE SPRUNG DRIVER
The 9t driver is similar to what you'd find on a cassette hub however it has sprung down pawls, this enables the hub to stay disengaged until you pedal forward. Also due to the mechanism of the hub the driver bearings are not under high axial loads like traditional freecoasters.
